3 Ton Road Construction Roller ST3000 with Kubota Engine 26.1kw in Kenya

Model Number : RP953T

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 500 units/month

Delivery Time : 10-15 days

Packaging Details : nude package

Weight : 22.3~30ton

Engine : SC9DF290

Power : 213kW

Max .Layer Thickness : 500mm

Basic pave width : 2.5m

Maximum pave width : 12mm

Maximum laydown rate : 1000t/h

Dimension : 6880×2720×4065mm

Contact Now

3 Ton Road Construction Roller ST3000 with Kubota Engine 26.1kw in Kenya

In the modern road construction and maintenance engineering system, the performance of the roller directly determines the upper limit of the quality of the project. ST3000 hydraulic double drum roller, in the asphalt pavement, cement stabilized layer and other complex working conditions, have demonstrated beyond the same level of compaction density and smoothness control ability, and has become a municipal infrastructure, highways and other major projects of the standard equipment.

Fully hydraulic system, efficient and easy to operate

  1. The hydraulic drive system adopts high-performance Italian BONDIOLI hydraulic pump and domestic customized piston motor, with strong and stable power. Compared with the mechanical drive, it responds quickly, can adjust the speed instantly, and the torque output is continuous and stable, so it can easily cope with all kinds of complex terrain.
  2. The hydraulic steering system accurately pushes the steering mechanism through the hydraulic cylinder, which makes the steering flexible and even. When working in narrow sites, the driver can easily maneuver and complete the work efficiently, while the system is highly reliable and low maintenance cost.
  3. Sauer hydraulic vibration system is equipped with one-key start function, which is convenient to operate. The single/double vibration modes can be freely switched, when compacting grass-roots materials, the double vibration modes work together to compact deeply; when compacting asphalt pavement, the single vibration mode avoids damage and ensures the compaction and smoothness of the road surface.

In addition, ST3000 is equipped with an electronic sprinkler system:

It can precisely adjust the amount of sprinkler water through the intelligent control panel to meet the needs of dust reduction and anti-stickiness under different working conditions. The system is equipped with automatic sensing function, which can start and stop intelligently according to the operating status of the roller to avoid wasting water. The matching scraper and water sprinkling system work together, while sprinkling water to moisten the surface of the steel wheel, the scraper removes the adhered soil, asphalt and other materials in a timely manner, effectively preventing the steel wheel from sticking to the wheel, reducing the frequency of manual cleanup, improving the operational efficiency, and guaranteeing the uniformity and continuity of the compaction effect.


Specification of 3 Ton Double Drum Vibratory Roller ST3000 Hot Sale in Kenya

Description Unit Parameter value
Operation weight kg 3000
Static line load n/cm 106/94
Working width mm 1355
Overall length mm 2480/2400
Overall height mm 1955/2630
Outside the turning radius mm 2405/3760
Drum width mm 1200
Drum diameter mm 630
Wheel base mm 1650
Engine brand CHANGCHAI YANMAR KUBOTA
Engine model ZN390B 3TNV88 V1505
Engine type Diesel inline water-cooled four-stroke
Number of cylinders 3 4
Output power kw 28.5 28.1 26.1
Rotating speed rpm 2600 3000 3000
Electrical equipment 12
Speed km/h 0-10
Climbing ability % 30/35
Vibration frequency hz 65
Exciting force kn 40
Hydraulic oil capacity L 46
Fuel capacity L 42
Water tank capacity L 180

3 Ton Road Construction Roller ST3000 with Kubota Engine 26.1kw Ready for Shipment

3 Ton Road Construction Roller ST3000 with Kubota Engine 26.1kw in Kenya

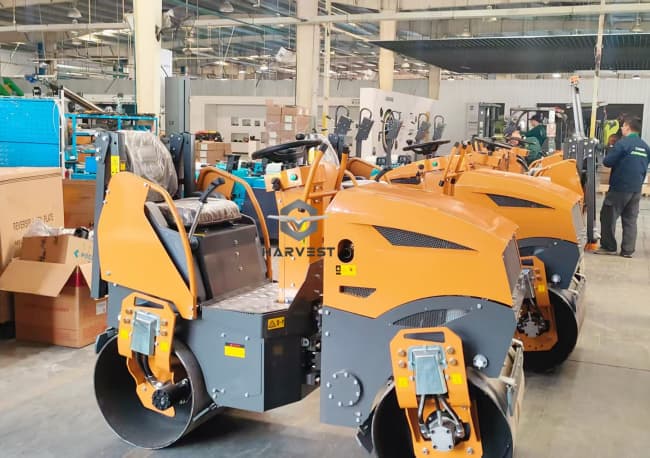

Workers Making Final Checks on the 3 Ton Double Drum Rollers ST3000 Sale to Kenya

3 Ton Road Construction Roller ST3000 with Kubota Engine 26.1kw in Kenya

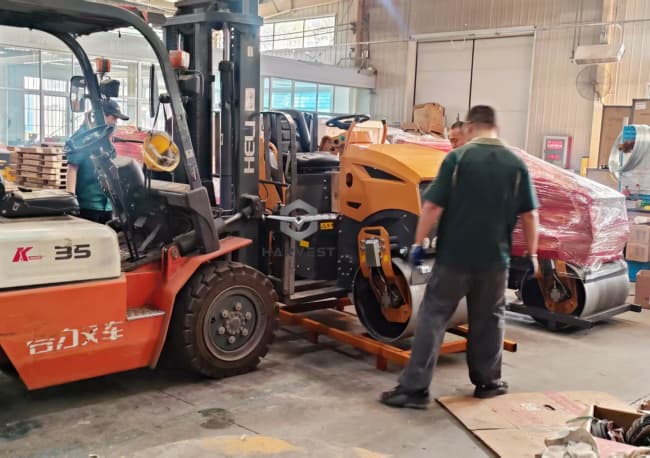

Forklift Puts 3 Ton Road Roller ST3000 on Pallet for Shipment to Kenya

3 Ton Road Construction Roller ST3000 with Kubota Engine 26.1kw in Kenya
