2.5 tons Road Construction Roller ST2500D Front Drum with Rear 4 Tyres

Henan Harvest Machinery & Truck Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2.5 tons Road Construction Roller ST2500D Front Drum with Rear 4 Tyres

Model Number : XM353

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 500 units/month

Delivery Time : 10-15 days

Packaging Details : nude package

Milling Width : 350

Milling Depth : 120mm

Engine : Detuz BF4M2012-10T3R

Power : 72kW

Weight : 4800kg

Working Speed : 0-40m/min

Ground Clearance : 120mm

Dimension : 10931x2502x4928mm

Contact Now

2.5 tons Road Construction Roller ST2500D Front Drum with Rear 4 Tyres

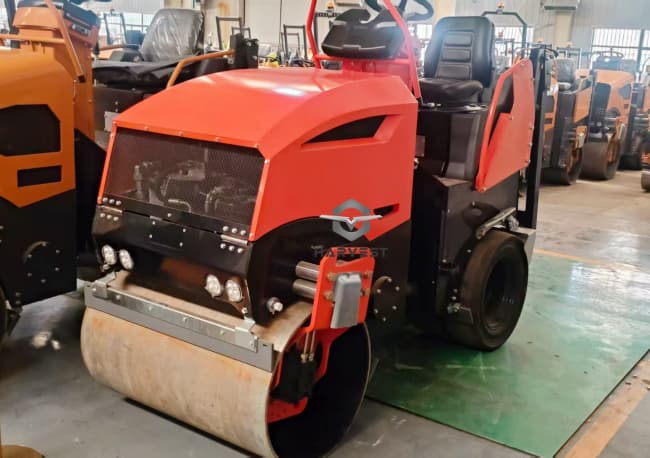

In the field of road construction and maintenance, a high performance roller plays a key role in ensuring the quality and progress of the project, and the ST2500D front drum and rear rubber drum roller has become the ideal choice for many projects due to its unique design and excellent configuration.

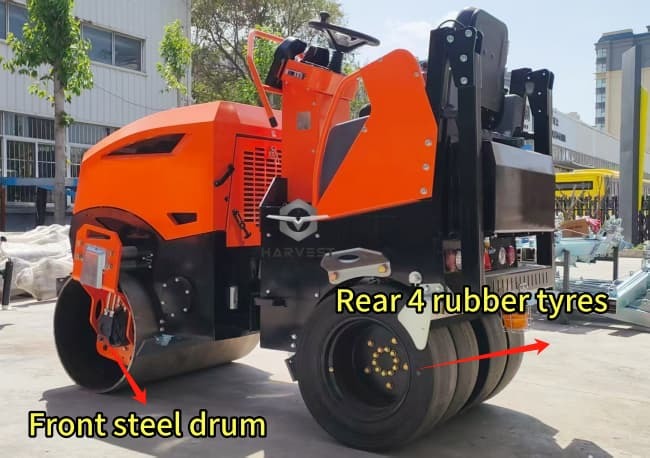

Front steel drum + rear rubber tyres, the advantage is obvious

  • Advantage of front steel drum compaction: During the vibration compaction process, the front steel wheel generates strong vibration force, which can effectively compact various kinds of grass-roots materials such as sand, gravel, stabilized soil, etc., and tamp down the foundation of the road surface to create good conditions for the subsequent construction.

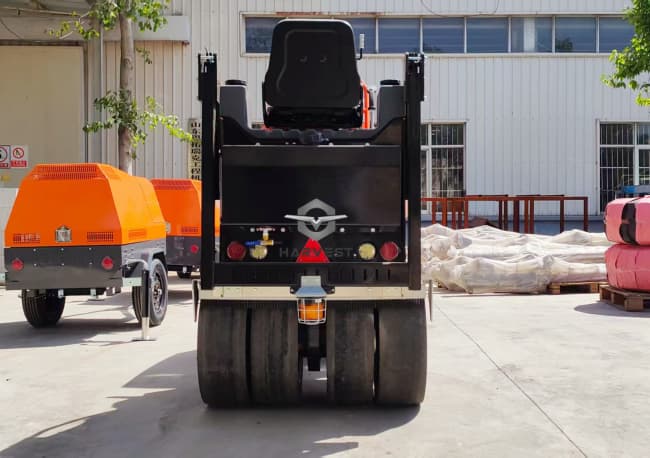

  • Rear 4 rubber tyres compaction features: the rear rubber wheel realizes the kneading compaction through flexible contact, especially suitable for asphalt pavement construction, which can make the asphalt mixture more dense and smooth, enhance the smoothness and compaction of the pavement, avoid cracks and loose problems on the pavement, and prolong the service life of the pavement.

2.5 tons Road Construction Roller ST2500D Front Drum with Rear 4 Tyres

  • Wide applicability: The design of front steel and rear rubber makes the ST2500D multi-purpose, applicable to a variety of pavement materials and construction conditions, whether it is municipal roads, highways, parking lots, sidewalks and other small projects can be capable of effectively improving the efficiency of the use of the equipment and economy.

Famous brand parts, casting reliable quality

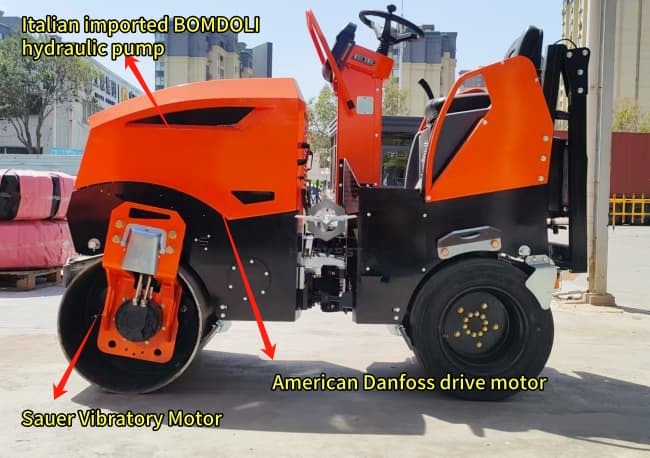

  • Italian imported BOMDOLI/CONCENTRIC hydraulic pump: ST2500D is equipped with Italian imported hydraulic pump as the core power source, which adopts plunger type structure and has a displacement suitable for multiple working conditions. Energy saving and consumption reduction, the whole machine life is more than 10,000 hours, reducing maintenance and guaranteeing the continuity of construction.
  • American Danfoss drive motor: Danfoss drive motor is compact and easy to install and maintain. With high torque power, it can adapt to all kinds of complex road conditions; advanced hydraulic control makes the operation precise and flexible. Its excellent dustproof and waterproof performance ensures stable operation of the equipment in harsh environments.
  • Sauer Vibratory Motor: Sauer vibratory motor provides stable vibration force for the front steel wheel and evenly transmits energy to realize deep compaction. The working frequency is adjustable, which is suitable for different road materials. High-quality materials and technology ensure long service life, reduce downtime and improve construction efficiency.

2.5 tons Road Construction Roller ST2500D Front Drum with Rear 4 Tyres

Specification of 2.5 tons Roller ST2500D Front Drum with Rear 4 Tyres in South Africa

Description Unit Parameter value
Operation weight kg 3000
Static line load n/cm 106/94
Working width mm 1355
Overall length mm 2480/2400
Overall height mm 1955/2630
Outside the turning radius mm 2405/3760
Drum width mm 1200
Drum diameter mm 630
Wheel base mm 1650
Engine brand
CHANGCHAI YANMAR KUBOTA
Engine model
ZN390B 3TNV88 V1505
Engine type
Diesel inline water-cooled four-stroke
Number of cylinders
3 4
Output power kw 28.5 28.1 26.1
Rotating speed rpm 2600 3000 3000
Electrical equipment
12
Speed km/h 0-10
Climbing ability % 30/35
Vibration frequency hz 65
Exciting force kn 40
Hydraulic oil capacity L 46
Fuel capacity L 42
Water tank capacity L 180

2.5 tons Tyre Combined Hydraulic Vibratory Roller ST2500D Sale in South Africa

2.5 tons Road Construction Roller ST2500D Front Drum with Rear 4 Tyres

Customized Orange 2.5 Ton Tyre Combined Roller ST2500D Sale in South Africa

2.5 tons Road Construction Roller ST2500D Front Drum with Rear 4 Tyres
