ADR 40/60ton Side Wall Semi Trailer 1310mm Axlebase For Cargo Truck

Name: ADR 4060ton Side Wall Semi Trailer 1310mm Axlebase For Cargo Truck
Brand: Harvest
Price: 1 USD

ADR 40/60ton Side Wall Semi Trailer 1310mm Axlebase For Cargo Truck Manufactures

Brand Name : Harvest

Model Number : Harvest

Certification : CE/DOT/ADR

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 units/month

Delivery Time : 15 days

Packaging Details : nude package

Size : 13000mm*2590mm*2400mm

Max Payload : 60 Tons

Axle : FUWA brand

Tire : 12.00R20

King pin : 2"(50mm)or3.5"(90mm) JOST

Color : Custom's Requirement

Axlebase : 1310mm

Material : steel

Contact Now

Payload 40/60 Ton Side Wall Semi-Trailer For Containers/Cargo Transport Pallet truck

We provide semi-trailers of various tonnages and models, and can also be customized according to customer requirements. Our semi-trailers are exported all over the world. Quality first, win-win cooperation.

Side Wall Semi-Trailer Technical Parameters

Side Wall Semi-Trailer Product Description
External Dimension	13000mm×2590mm×2400mm
Main Beam	Heavy duty and extra durability I beam; opting for high tensile steel Q345,welding by automatic submerged-arc processes; Top flange 14mm,width 140mm;middle flange 8mm; bottom flange 16mm,width 140mm
Side Beam	16# channel steel(U-steel)
Floor	Checkered plate ,thickness 5mm,Q235 material
Side wall	800mm,by your need
Axle	Number	3	Brand	FUWA	Capacity	13T
Suspension	Mechanical suspension
Leaf Spring	90mm×13mm×10
Tire	12.00R20
Wheel rim	8.5-22.5 steel wheel rim optional upon choice
King pin	2’/3.5’ bolt-in type
Landing gear	Holland, two-speed ,manual operating, heavy duty landing gear
Twist lock	4/8/12,By your need
Braking System	WABCO RE6 relay valve; T30/30 spring brake chamber ;40L air tanks
Electrical System	Voltage 24V, receptacle 7 ways (7 wire hamess); LED light, one set 6-core standard cable.
Painting	Complete chassis sand blasting to clean rust ,1 coat of anticorrosive prime,2 coats of final paint
Accessories	One standard tool box

ADR 40/60ton Side Wall Semi Trailer 1310mm Axlebase For Cargo Truck

Product Tags:

60ton Side Wall Semi Trailer

ADR Side Wall Semi Trailer

1310mm Axlebase Cargo Semi Trailer

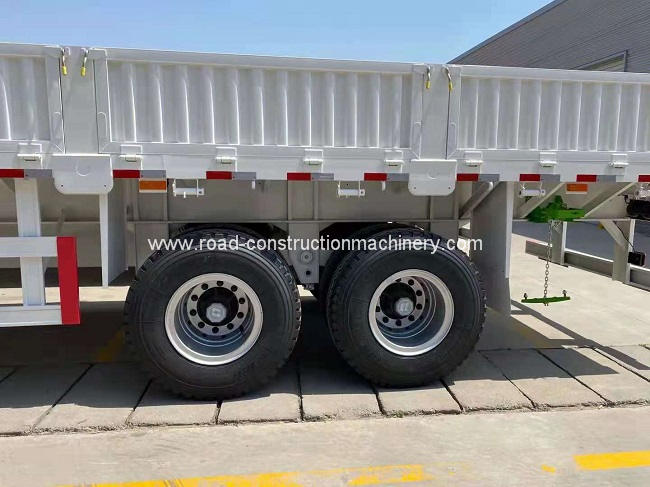

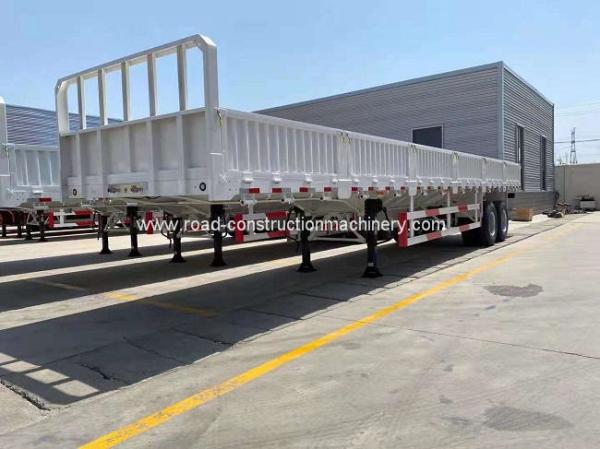

ADR 40/60ton Side Wall Semi Trailer 1310mm Axlebase For Cargo Truck Images
